Product Key Features:
- Oxygen production: Zen-O Lite continuously manufatures 1050 ml’s of oxygen.
- Sensitivity: Zen-O Lite’s trigger setting of -.12 cm/h2o misses less breath, delivering more oxygen to the patient.
- Delivery speed: Zen-O Lite’s 20.5 PSI outlet pressure provides the fastest and most powerful delivery of the oxygen bolus. By ensuring a full bolus is delivered during the first half of inspiration, your patient gets the most therapeutic dose.
- Bolus Size: Rate Responsive Therapy (RRT) delivers a larger, more consistent, fixed bolus. And under demand, and in certain conditions, Zen-O Lite can provide up to 40% more oxygen.
- Travel-Friendly: Approved for use during flights.

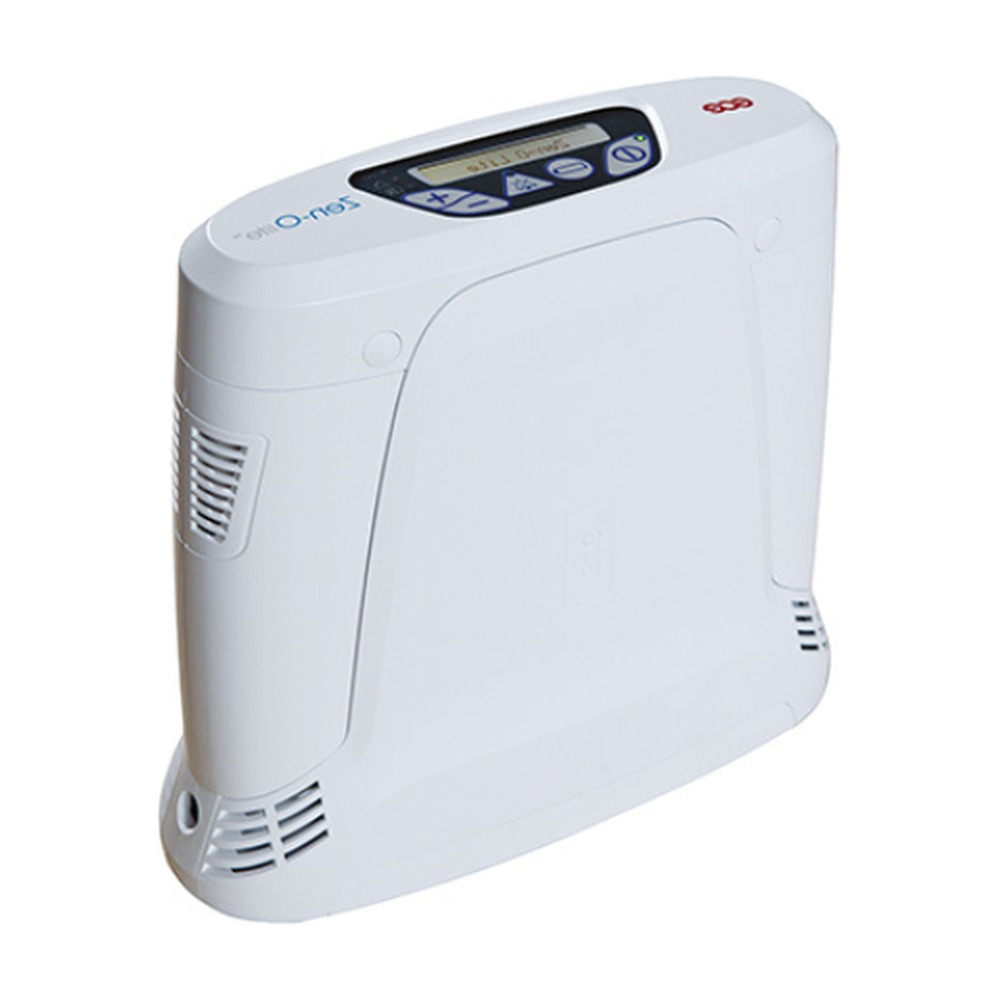

The Zen-O Lite Portable Oxygen Concentrator is an ideal solution for those requiring oxygen therapy but wishing to maintain an active lifestyle. This device combines a lightweight, portable design with advanced oxygen delivery technology, making it perfect for both home use and travel.
The Zen-O Lite’s battery life ensures up to 4-6 hours of continuous operation, providing users with greater freedom and independence. Pulse flow settings can be customized to meet each user’s specific oxygen needs, ensuring effective and efficient therapy.
Moreover, its quiet operation, at less than 40 decibels, makes the Zen-O Lite a discreet choice for everyday use. This concentrator also complies with flight regulations, allowing users to easily take it on airplanes without any hassle.
Specifications
Size (WxDxH) | 9.8″ x 3.8″ x 9.25″ |
Weight | 5.5 lbs (2.5 kg) without carry bag |
Power Requirements | AC adaptor: 100-240V AC (+/-10%) 50-60 Hz in, 24V DC, 5.0A out |
Purity | 87%-96% at all settings |
Maximum oxygen discharge pressure | 20.5 psi |
Inspiration trigger sensitivity | -0.12cm/h2o |
Humidity range | 5% to 93% +/- 2% non-condensing |
Operating altitud | 0m to 4,000m (0′ to 13,000′) |
Operation temperature | 41°F (5°C) and 104 F° (40°C) |
Storage temperature | -4°F (-20°C) and 140 F° (60°C) |
Setting | Adjustable in 0.5 increments from 1.0 to 5.0 |
Noise level | 37 dB(A) at setting 2 |
Battery duration | Up to 4 hours |
Battery discharge Intervales
Flow Setting | Aprox. Battery Life (hours:minutes)* |
Pulse 1 | Up to 4 hours |
Pulse 2 | Up to 4 hours |
Pulse 3 | Up to 3 hours |
Pulse 4 | Up to 2:15 hours |
Pulse 5 | Up to 2 hours |
*Battery run time above are estimates based on 18 breaths/minute.
Videos
Zen-O Instructions of Use
Instruction video for patients.
Basic Service and Maintenance
This video shows how to look after your device.
Included in the package

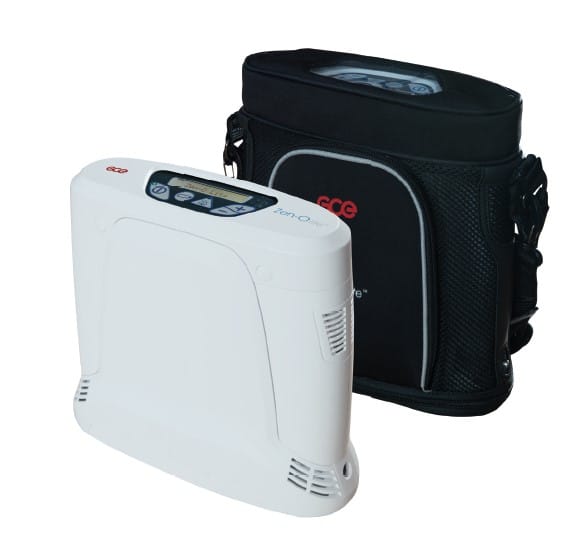

GCE Zen-O Lite Portable Oxygen Concentrator (RS-00608-X-D)
- 1 x Zen-O Lite Portable Oxygen Concentrator (RS-00608)
- 2 x 8- Cell Rechargeable Lithium Battery (RS-00601)
- 1 x AC Power Supply Adapter (RS-00604)
- 1 x DC Adapter (RS-00605)

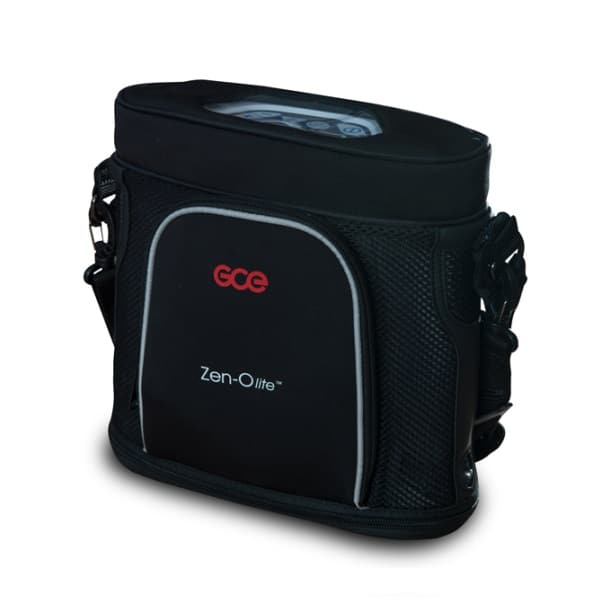

- 1 x Carry Bag (RS-00606)
- 1 x User Manual (RS-006029)
- 1 x Quick Start Guide
FAQs
A: The Zen-O offers pulse dose settings ranging from 1 to 5, with increments of 0.5.
A: The device uses advanced pulse dose technology (RRT: Rate Responsive Therapy) to automatically adjust oxygen delivery in response to the user’s breath rate, ensuring consistent dosing and optimal oxygen saturation.
A: Yes, the Zen-O Lite comes with a comprehensive 3-year warranty, giving users peace of mind and assurance of the product’s reliability.
A: Yes, the Zen-O Lite is FAA-approved for in-flight use.
A: Absolutely! The Zen-O Lite can operate while connected to a power source.
